Users of iPhones or iPads may occasionally need to edit email server settings in iOS so that they can use email on that device. The changes to the port settings in iOS can only be made to an existing email account. If you need to set up an account on your device, then go to How to Create an Email Account in iOS for the steps.  The following tutorial will take you through making those changes using screenshots from an iPhone 12 Pro with iOS version 14.6.

A modern, user-friendly website can boost your online engagement and help build your business. Contact our professional web design team today for a beautiful, custom WordPress website.

Editing the Email Server Settings in iOS – Incoming

The incoming settings for an email account can involve two possible email protocols:  IMAP and POP3. Changing the settings for an existing account is not immediately obvious as they are hidden in the Advanced section.  Follow the steps below to find the incoming server settings and edit them as needed.

  1. Log in to your iOS device and tap on Settings.
  2. Tap on Mail.
  3. Select Accounts.
  4. Select the account that you wish to edit. Some accounts may have more than one email address setup. You would then need to select a specific email account after selecting the account in the list shown below.

    Select email account
  5. When you’re on the account page, tap on the line labeled Account (with the email address) to go to the Account page.

    Tap on Account Title
  6. When you are in the Account page you can change the server name. Tap on the line labeled Host Name to replace the existing setting as needed.

    Edit host name

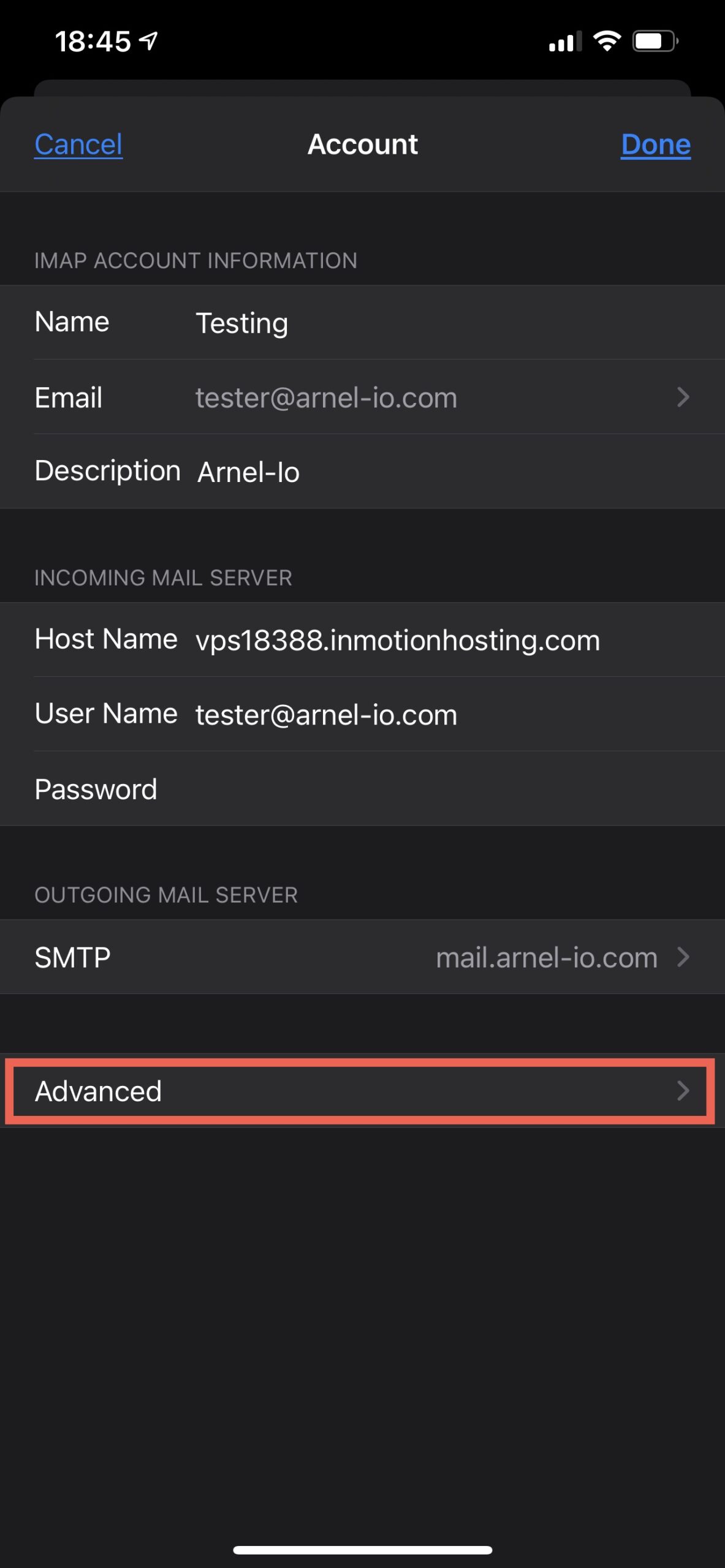

  7. At the bottom of the Account page will be a bar labeled Advanced. Tap on that option.

    Click on the Advanced bar

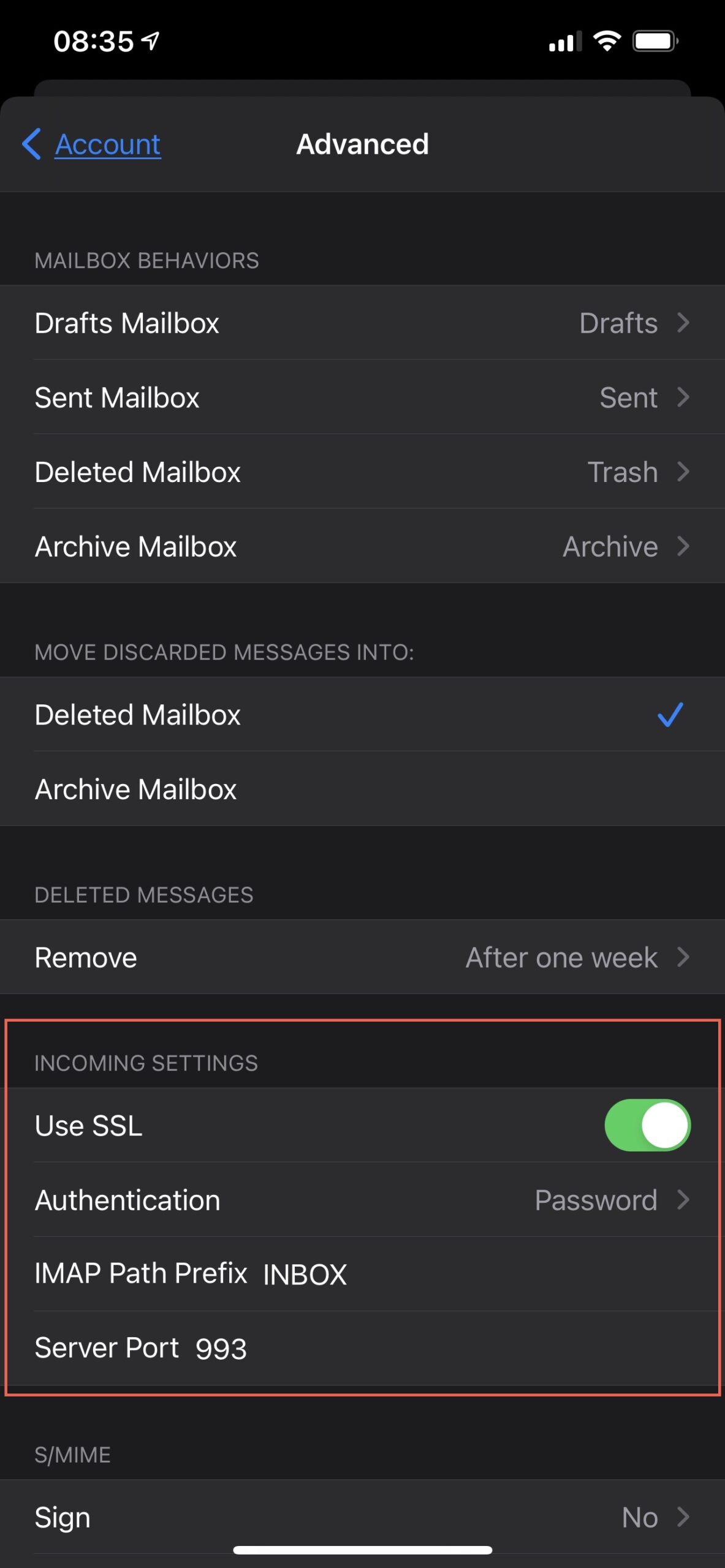

  8. Scroll to the bottom until you see the section labeled INCOMING SETTINGS. Tap on the line for each of the following settings to make changes:

    Select Incoming server settings

    Use SSL – this option is enabled by default.  Changing this setting automatically changes the port setting.
    Authentication – Password is the option required for use with InMotion accounts
    IMAP Path Prefix – this option is set to INBOX by default
    Server Port – the incoming port is set to 993.  This is Setting is automatically changed by the Use SSL option above, but you can also click on this line to manually set a port number.

    Incoming Port settings:
    IMAP (secure) = 993, IMAP (non-secure) 143
    POP3 (secure) = 995, POP3 (non-secure) 110
  9. Finally, at the top of the page return to the account page by tapping on the arrow labeled Account.
  10. Then, in the top right corner of the Account page, tap on Done to save your changes. It is important that you tap on done, because your changes will not be saved if you don’t.

Editing the Email Server Settings in iOS – Outgoing (SMTP)

The outgoing server settings can often vary based on the email provider that you are using.  It is not affected by the same email protocols in the incoming server settings. The outgoing mail server uses SMTP (Simple Mail Transport Protocol). Your outgoing email will not work unless it is properly configured.  If you have any issues with your email settings, then contact our live technical support team for immediate assistance.

  1. Log in to your iOS device and tap on Settings.
  2. Tap on Mail.
  3. Select Accounts.
  4. Select the account that you wish to edit. Note that some accounts may have more than one email address, so you may need to select a specific account if you have more than one setup for the server you’re editing.

    Select email account
  5. When you’re on the account page, tap on the line labeled Account (with the email address) to go to the Account page.

    Tap on Account Title

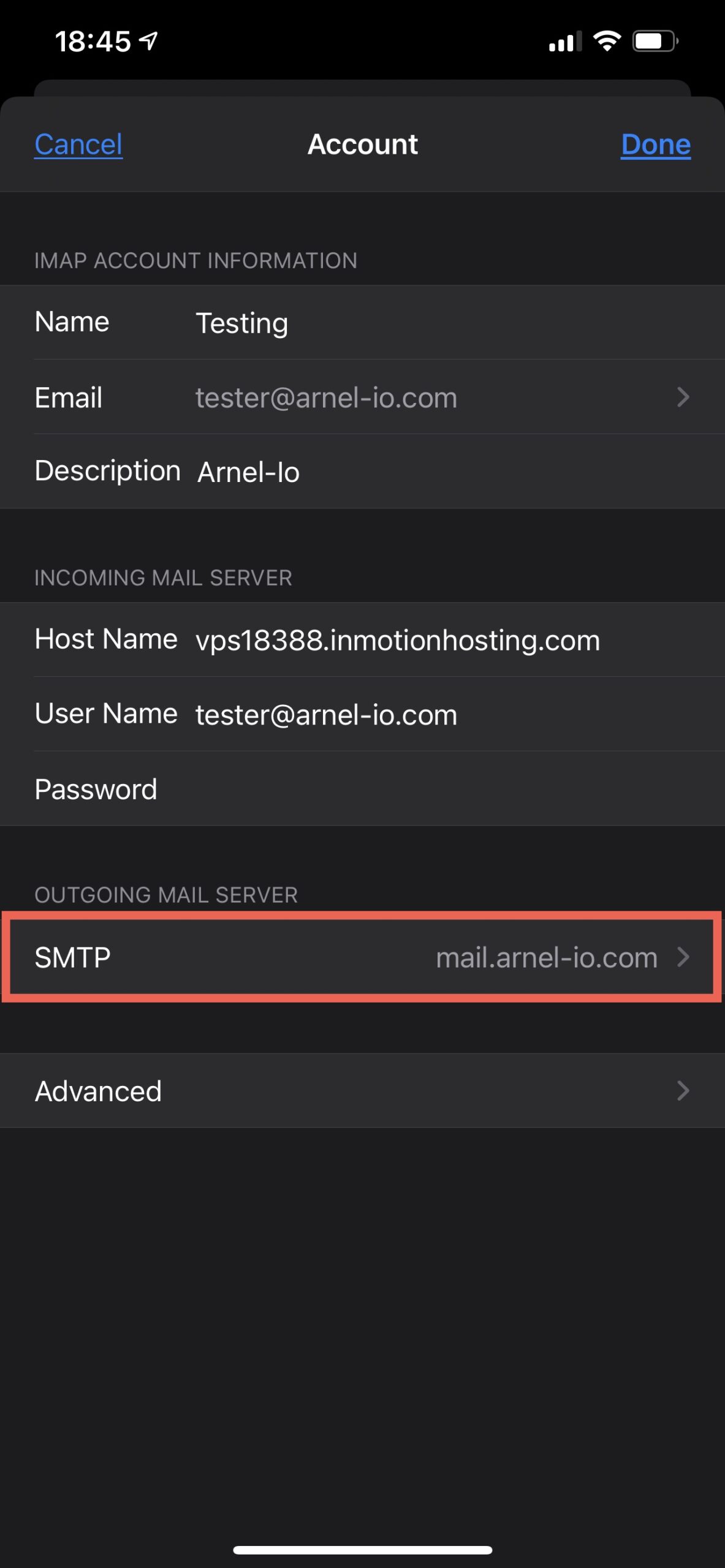

  6. Scroll toward the bottom of the Account page and you will find the section labeled OUTGOING MAIL SERVER. The bar will be labeled SMTP and you should see the existing SMTP server setting.  Tap on that bar.

    Select SMTP bar
  7. The next page is labeled SMTP (Simple Mail Transfer Protocol). You may see a primary server defined at the top of the page and then a list of other SMTP servers that have been set on your device.  If you do not see the SMTP server that you want to use, then click on Add Server.  You will be required to add the name of the server, the user name, and the password (used by email account) to use that server. If you are not adding an SMTP server, then tap on the one you wish use. You may need to change its status to ON as necessary. You will need to tap on any newly added SMTP server in order to change its settings.

    SMPT Server page - Add or Select
  8. Each of the settings included on this page can be manually changed by simply tapping on the corresponding line.  There is also a slider to turn the SMPT server on or off.

    SMTP Server page

    Here’s a list of the settings:
    Host Name – server name
    User Name – email account user
    Password – password of the email account
    Use SSL – slider turning it on or off.  Note that changing this option does not automatically change the port number.
    Authentication – set to Password by default.  This is the setting used by InMotion.
    Server Port – the outgoing port using the secure setting is 465 and 587 for the non-secure. You may need to speak with your email provider if you are unsure of this setting.  For InMotion Hosting customers, you can use this guide to help you find those settings.
  9. When you have finished making your changes or adding the server, make sure to tap on Done in the top right corner.
  10. You will then see the list of SMTP servers again. Make sure that only one SMTP server is set to ON.  You might see more than one on, if you have multiple servers listed.  Turn off the unnecessary SMTP server as needed. Tap on Account in the top left corner of the SMTP page.  This will bring you back to the Account page.
  11. Tap on Done in the top right corner to save your changes.

Congratulations! You now know how to edit the server settings in IOS (14+). To learn more about using email, check out our Email knowledge base for many other useful and helpful articles.
